UHF Area Coverage Amplifier / WACA
The UHF Area Coverage Amplifier provides a wide area coverage solution to above ground communication extensions of the existing Leaky Feeder system. The provision of increased RF power level for range extension provides application solutions for areas that lack adequate communication coverage such as head-gears and workshops at the mine.
KEY FEATURES:
- Voice and Data Compatible
- IP65 Enclosure
- 110/230VAC Mains powered
DESCRIPTION:
The UHF Area Coverage Amplifier provides a wide area coverage solution to above ground communication extensions of the existing Leaky Feeder system. The provision of increased RF power level for range extension provides application solutions for areas that lack adequate communication coverage such as head-gears and workshops at the mine.

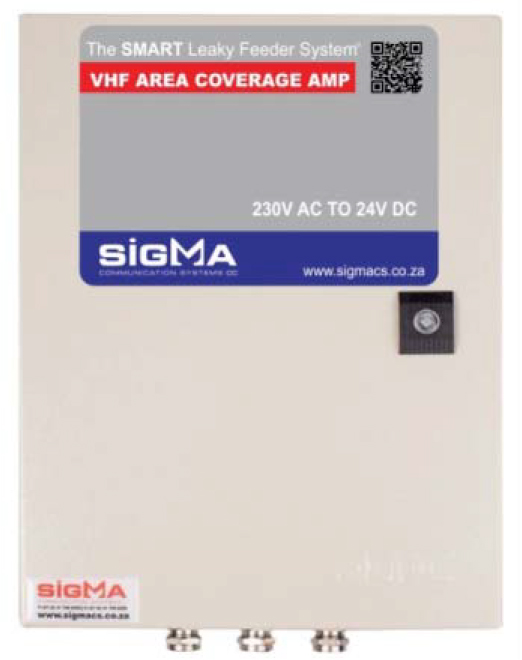

The unit consists of a high power RF amplifier with the two separate communication paths for uplink and downlink RF, a main to DC power supply with the option of battery backup all housed inside an IP65 rated steel enclosure with external connectors.
SPECIFICATIONS:
| Frequency: | BTX 152-158MHZ, BRX 168-172 MHZ Tunable BW = 2.5MHZ |
| Gain: | 30 dB |
| Impedance: | 50 Ohm |
| Dynamic Range: | 40 dB |
| Power Supply: | Internal Mains to 24 VDC (optional battery backup with charging circuit) |
| Power requirements: | 86 – 265 Vac |
| Connectors: | N-Type |
| Enclosure: | Powder Coated Steel Enclosure |
| Weight: | 9.2 Kg |
